Woven Gabion Baskets: A Comprehensive Guide for Civil Engineering Applications

1. What is a Woven Gabion Basket? Definition and Structure

Keywords: woven gabion baskets, double twisted hexagonal mesh, modular design, flexible structure, erosion control, gabion installation

A woven gabion basket is a rectangular wire mesh container crafted from double twisted hexagonal steel wire. Its edges are reinforced with thicker wire to enhance durability. These baskets are delivered flat-packed to construction sites, where they are assembled, lifted into position, and filled with durable rocks or gravel. The modular design allows versatile configurations, making them ideal for erosion control, retaining walls, and landscaping projects.

Key Features:

Material: Galvanized steel wire, PVC-coated wire, or Galfan (zinc-aluminum alloy) wire.
Mesh Size: Typically 60x80mm or 80x100mm.
Wire Diameter: 2.0–4.0mm for mesh; 3.4mm for edge reinforcement.
Advantages: Permeable, flexible, and eco-friendly.

2. Applications of Woven Gabion Baskets in Civil Engineering

Keywords: gabion retaining walls, slope stabilization, riverbank protection, architectural gabion walls, soil erosion control

Woven gabion basketsare widely used in:

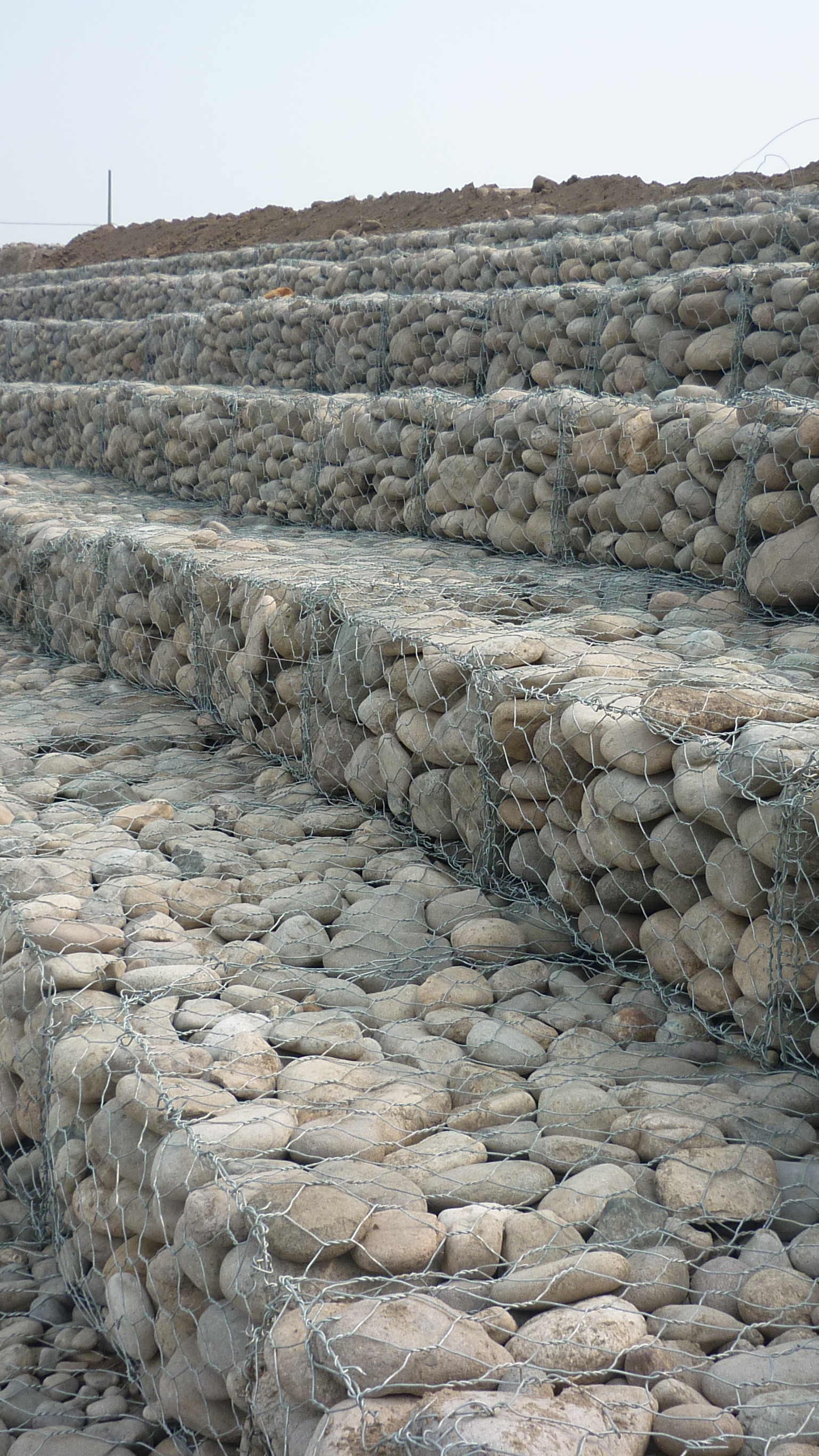

1. Retaining Walls: Stacked to form steep hillside protection, preventing landslides and debris flow.
2. River Management: Deployed as mattresses for channel linings and bank stabilization.
3. Infrastructure: Bridge abutments, culvert headwalls, and railway/roadbed protection.
4. Landscaping: Decorative walls, garden features, and noise barriers.

Case Study: In water conservancy projects, gabion cages (0.5–1.0m thick) effectively control debris flow on steep slopes while maintaining ecological balance.

3. Step-by-Step Guide to Installing Woven Gabion Baskets

Keywords: gabion installation guide, site assembly, stone filling, gabion lacing wire, erosion control projects

Installation Process:

1. Site Preparation: Clear debris and level the ground.
2. Assembly: Unfold the flat-packed gabion and connect panels using lacing wire.
3. Positioning: Lift and place the basket using cranes or machinery.
4. Filling: Add stones (100–300mm diameter) evenly, avoiding voids.
5. Closing: Secure the top cover with wire to prevent material spillage.


Tips:

Use vibratory compactors to settle stones.
Inspect for bulges or deformations during filling.

4. Advantages of Woven Gabion Baskets Over Traditional Methods

Keywords: gabion advantages, permeable structure, flexible design, cost-effective, environmental impact

Why Choose Gabions?:

1. Eco-Friendly: Allows water flow, reducing hydrostatic pressure.
2. Durability: Withstands harsh weather and corrosion (galvanized/PVC-coated options).
3. Cost Efficiency: 30% faster installation and 50% lower maintenance vs. concrete.
4. Aesthetic Flexibility: Blends with natural landscapes; customizable with decorative fills (e.g., stones, logs).

Comparison: Traditional retaining walls crack under soil pressure, while gabions adapt to deformation.

5. Maintenance Tips for Woven Gabion Baskets

Keywords: gabion maintenance, structural inspection, stone replenishment, corrosion protection, long-term durability

Maintenance Checklist:

1. Inspect Annually: Check for rust, mesh deformation, or stone loss.
2. Replenish Stones: Replace eroded material promptly.
3. Corrosion Control: Apply anti-rust paint to exposed wire every 2–3 years.
4. Vegetation Management: Trim plants growing through mesh to prevent blockage.

Pro Tip: Use drones for high-wall inspections to ensure safety and accuracy.
